Filter
| Part # | Size | Flow Rate | Pool Turnover (6hr.) | Pool Turnover (8hr.) |
| PCCF - 075 | 75 sq ft cartridge | 75 GPM | 27,000 | 36,000 |
| PCCF - 100 | 100 sq ft cartridge | 100 GPM | 36,000 | 48,000 |
| PCCF - 125 | 125 sq ft cartridge | 125 GPM | 45,000 | 60,000 |
| PCCF - 150 | 150 sq ft cartridge | 150 GPM | 45,000 | 60,000 |
| PCCF - 200* | 200 sq ft cartridge | 150 GPM | 45,000 | 60,000 |
*Ideal for longer cleaning cycles

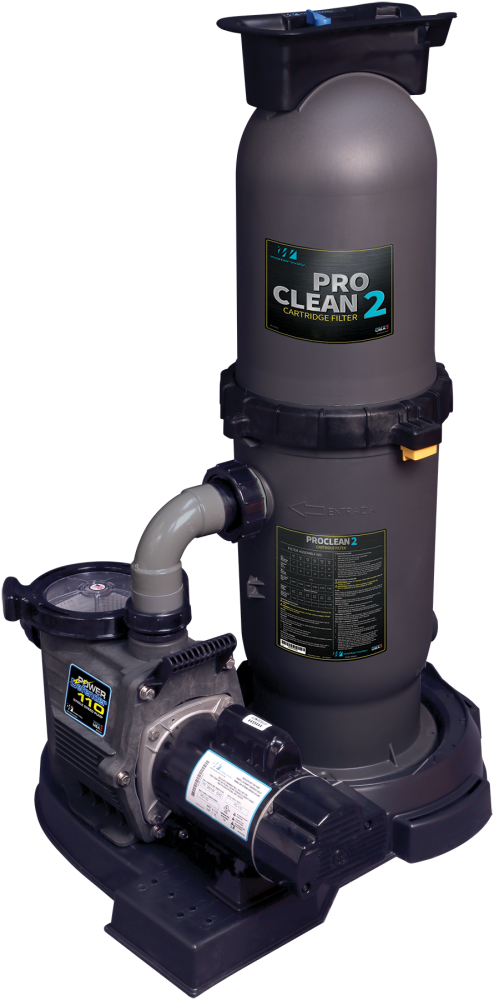

ProClean Plus System with PD-110

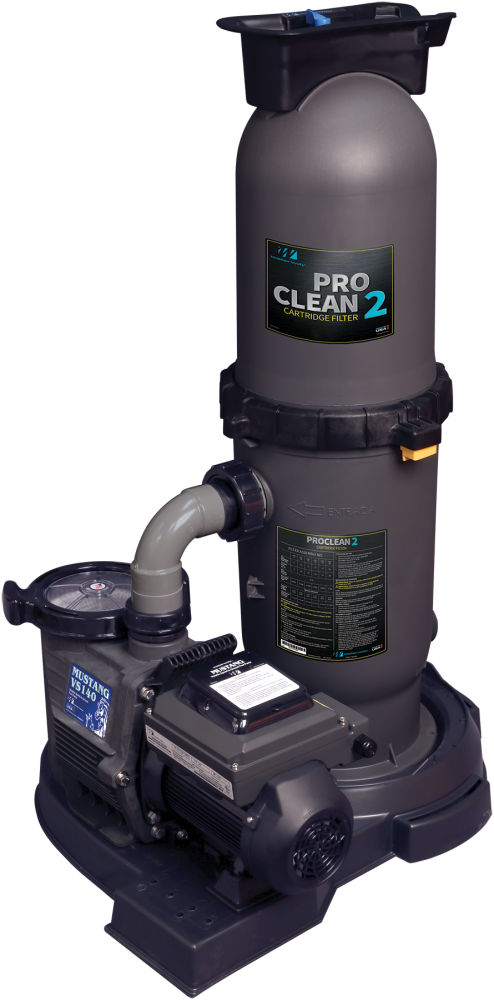

ProClean Plus System with Mustang 140

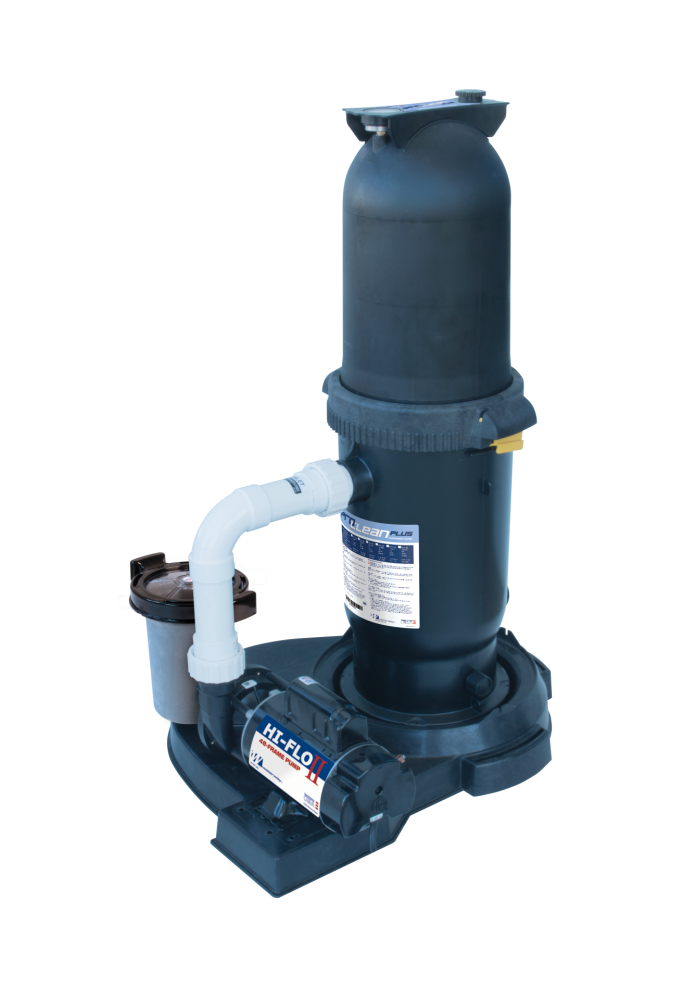

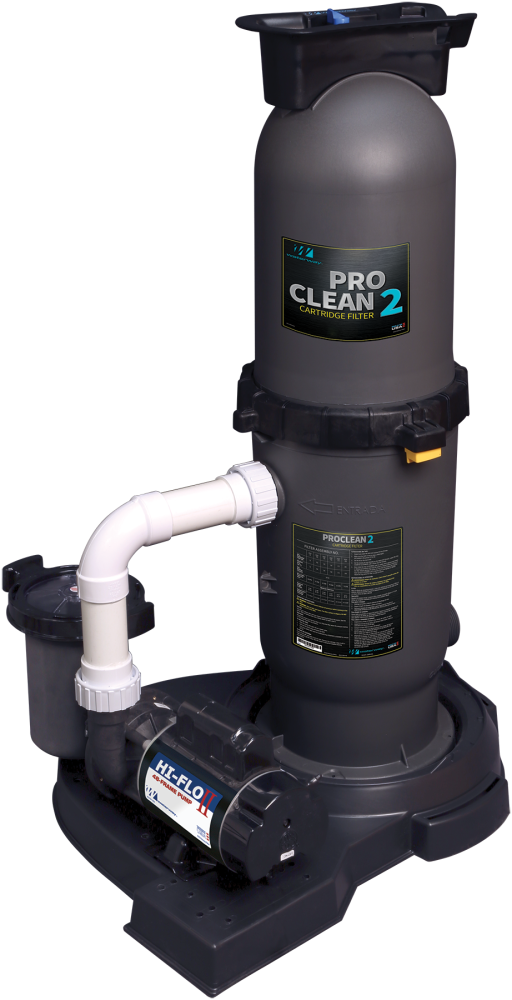

ProClean Plus System with HiFlo II
Above ground features:
- 1½" FPT inlet and 1½" x 2" S outlets for more flow
- Unionized pump to filter plumbing kit
- Waterway's Safety Lock Ring System for fast, easy access to filter internals
- Internal design for more dirt holding capacity for longer cleaning cycles
- Hi-Flo II high performance single or dual speed pump
- Two 1½" diameter hoses with fittings and clamps
- Commercial grade stainless steel pressure gauge - Best in the Industry
- New heavy duty manual air relief valve
- All new roll bar handle design
In - ground features:
- Heavy duty one piece base allows for turnkey assembly to simplify installation time
- Unionized pump to filter plumbing kit
- Power Defender 110 single speed or Mustang 140 variable speed pump
- 2" S unions for inlet and outlet for more flow
- Waterway's Safety Lock Ring System for fast, easy access to filter internals
- Internal design for more dirt holding capacity for longer cleaning cycles
ProClean Plus ProPack Systems
| Part No. | Description | Cord | HP | Speed |
| 520-6000-6S | Hi-Flo II Pump Above Ground 75 sq ft | 3 FT NEMA | 1.0 HP SPL | 1 Speed |
| 522-6000-6S | Hi-Flo II Pump Above Ground 75 sq ft | 3 FT NEMA | 2.0 HP SPL | 2 Speed |
| 522-6215-6S | Hi-Flo II Pump Above Ground 125 sq ft | 3 FT NEMA | 2.0 HP SPL | 2 Speed |
| 522-6315-6S | Hi-Flo II Pump Above Ground 150 sq ft | 3 FT NEMA | 2.0 HP SPL | 2 Speed |
| 520-0110 | Power Defender 110 In-Ground 200 sq ft | 1.10 THP | 1 Speed | |
| 520-0140 | Mustang 140 In- Ground 200 sq ft | 1.40 THP | Variable Speed |
Pumps and replacement motors that are single speed and one (1) total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.
