Features:
- Executive wet end designed specifically for 48-frame motors
- Large 2 ½" intake for improved flow performance and reduced noise
- Large 6 ½" diameter wet end for higher head pressure
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90°
- Silicone carbide seals, Viton bellows, 316SS casing
Call for available cords and plugs.
Pumps and replacement motors that are single speed and one (1) total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.
2-Speed Executive 48-Frame Pumps

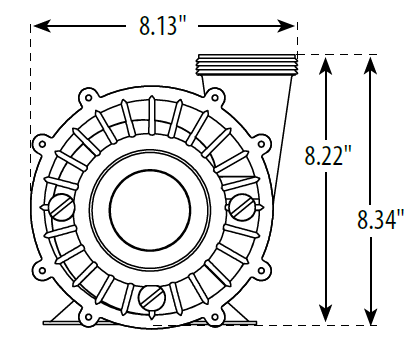

| Part No. | Description | HP | Volts | Amps High Speed | Amps Low Speed | Hz | Dimension "A" | Weight (lbs.) | List (US $) |
| 3420410-1A | 2" Intake - 2" Discharge | 1.0 | 115 | 11.0 | 2.9 | 60 | 9.73" | 27 | 609.09 |
| 3420410-13 | 2 1⁄2" Intake - 2" Discharge | 1.0 | 115 | 11.0 | 2.9 | 60 | 9.73" | 27 | 609.09 |
| 3420610-1A | 2" Intake - 2" Discharge | 1.5 | 115 | 16.4 | 4.4 | 60 | 10.48" | 30 | 665.10 |
| 3420610-13 | 2 1⁄2" Intake - 2" Discharge | 1.5 | 115 | 16.4 | 4.4 | 60 | 10.48" | 30 | 665.10 |
| 3420620-1A | 2" Intake - 2" Discharge | 1.5 | 230 | 8.0 | 2.6 | 60 | 10.45" | 30 | 665.10 |
| 3420620-13 | 2 1⁄2" Intake - 2" Discharge | 1.5 | 230 | 8.0 | 2.6 | 60 | 10.45" | 30 | 665.10 |
| 3420820-1A | 2" Intake - 2" Discharge | 2.0 | 230 | 10.5 | 2.6 | 60 | 11.0" | 33 | 704.74 |
| 3420820-13 | 2 1⁄2" Intake - 2" Discharge | 2.0 | 230 | 10.5 | 2.6 | 60 | 11.0" | 33 | 704.74 |
| 3421221-1A | 2" Intake - 2" Discharge | 3.0 | 230 | 8.5 | 2.8 | 60 | 11.0" | 36 | 729.26 |
| 3421221-13 | 2 1⁄2" Intake - 2" Discharge | 3.0 | 230 | 8.5 | 2.8 | 60 | 11.0" | 36 | 729.26 |
| 3421821-1A | 2" Intake - 2" Discharge | 4.5 | 230 | 12.0 | 3.5 | 60 | 11.98" | 37 | 822.15 |
| 3421821-13 | 2 1⁄2" Intake - 2" Discharge | 4.5 | 230 | 12.0 | 3.5 | 60 | 11.98" | 36 | 822.15 |
1-Speed Executive 48-Frame Pumps
| Part No. | Description | HP | Volts | Amps | Hz | Dimension "A" | Weight (lbs.) | List (US $) |
| 3410410-1A | 2" Intake - 2" Discharge | 1.0 | 115 | 12 | 60 | 9.23" | 22 | 527.02 |
| 3410610-1A | 2" Intake - 2" Discharge | 1.5 | 115 | 17 | 60 | 9.78" | 26 | 566.34 |
| 3410830-1A | 2" Intake - 2" Discharge | 2.0 | 115 / 230 | 20 / 10 | 60 | 10.98" | 33 | 648.56 |
| 3411621-1A | 2" Intake - 2" Discharge | 4.0 | 230 | 12 | 60 | 11.18" | 36 | 761.83 |
| 3411621-13 | 2 1⁄2" Intake - 2" Discharge | 4.0 | 230 | 12 | 60 | 11.18" | 36 | 761.83 |
