Designed, Engineered & Manufactured in the U.S.A.

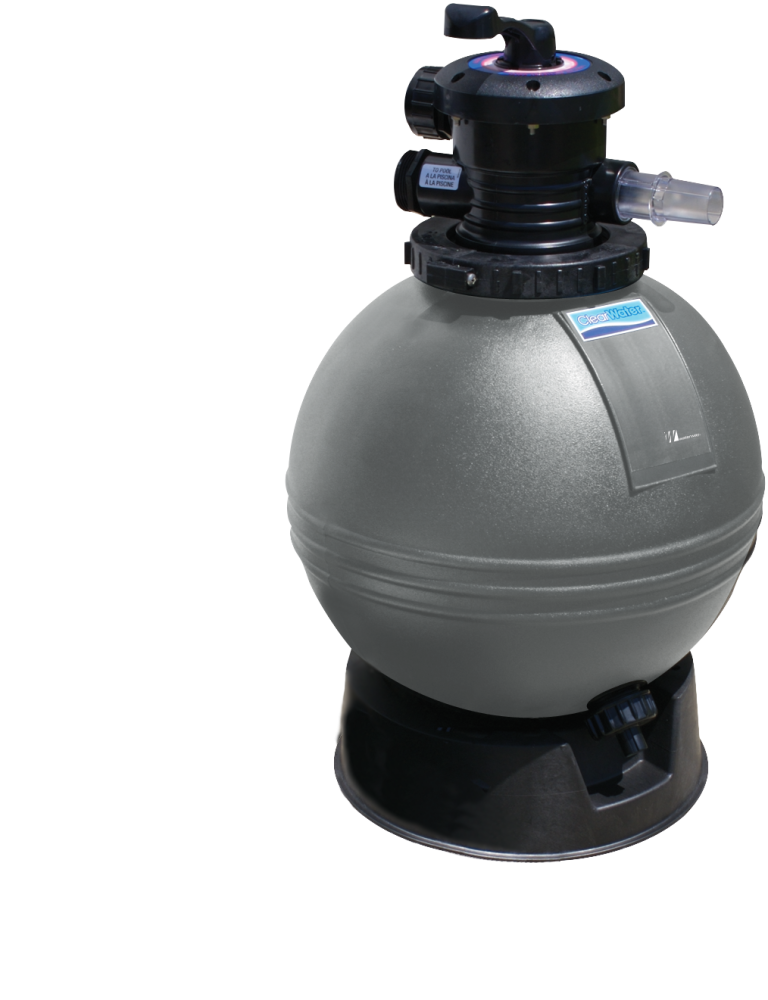

ClearWater – Sand

Rugged, corrosion proof, high filtration area, and one-piece body. The ClearWater Sand filter features a seven-function top mount valve for maximum control over the filter system, and full flow, self cleaning laterals with large surface area for maximum flow. This filter is an excellent choice for above ground or in-ground pools.

  • 7-Position Top-Mount Valve
  • Spherically Designed for Maximum
    Strength and Longer Life
  • Durable High Flow Laterals

Features:

  • Durable roto-molded tank body is spherical to evenly distribute pressure, resulting in greater strength and longer life of the filter
  • Corrosion-proof body
  • High Flow internal diffuser for even water distribution
  • 7-function Top-Mount 1 1/2" FPT Multi-Port Valve with Split-Nut Lock Union
  • 1 1/2" drain port
  • Mounting base included

Sand Required

Size Weight
16" 50 lbs.
19" 100 lbs.
22" 150  lbs.
26" 200  lbs.

ClearWater Sand Filter

Part No. Description Filtration Area Flow Rate Pool Turnover (6 hrs.) Pool Turnover (8 hrs.) Weight (lbs.) List (US $)
FS016 16" diameter Filter 1.4 sq. ft. 35 GPM 12,600 16,800 25 513.94
FS019 19" diameter Filter 2.0 sq. ft. 45 GPM 16,200 21,600 28 672.09
FS022 22" diameter Filter 2.6 sq. ft. 55 GPM 19,800 26,400 34 778.21
FS026 26" diameter Filter 3.5 sq. ft. 70 GPM 25,200 33,600 43 902.01

1 1/2" FPT split-nut style clamp included.
