Designed, Engineered & Manufactured in the U.S.A.

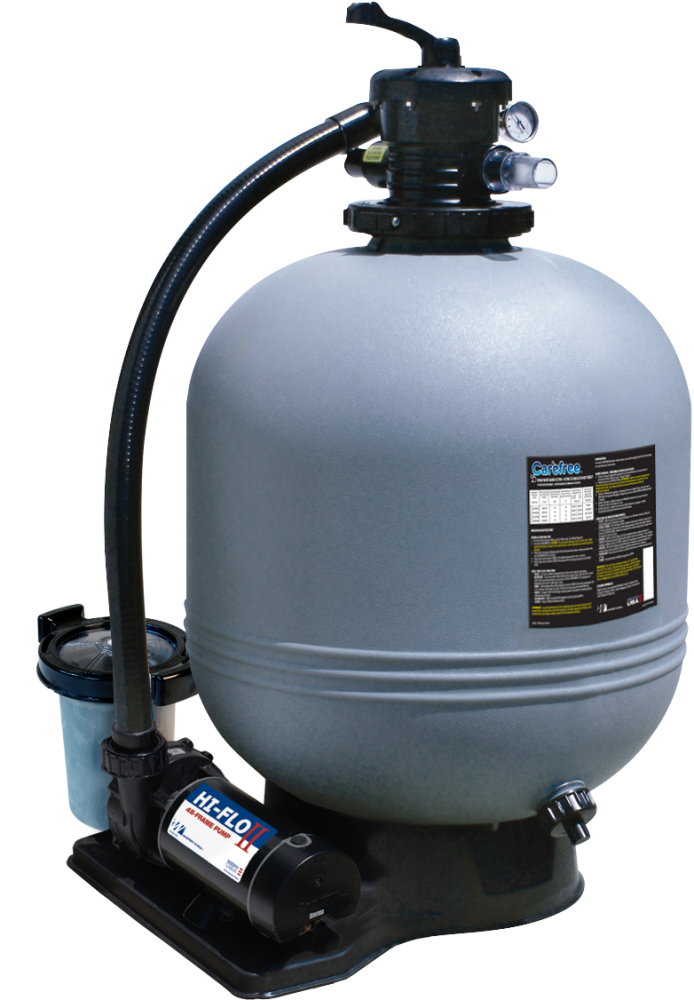

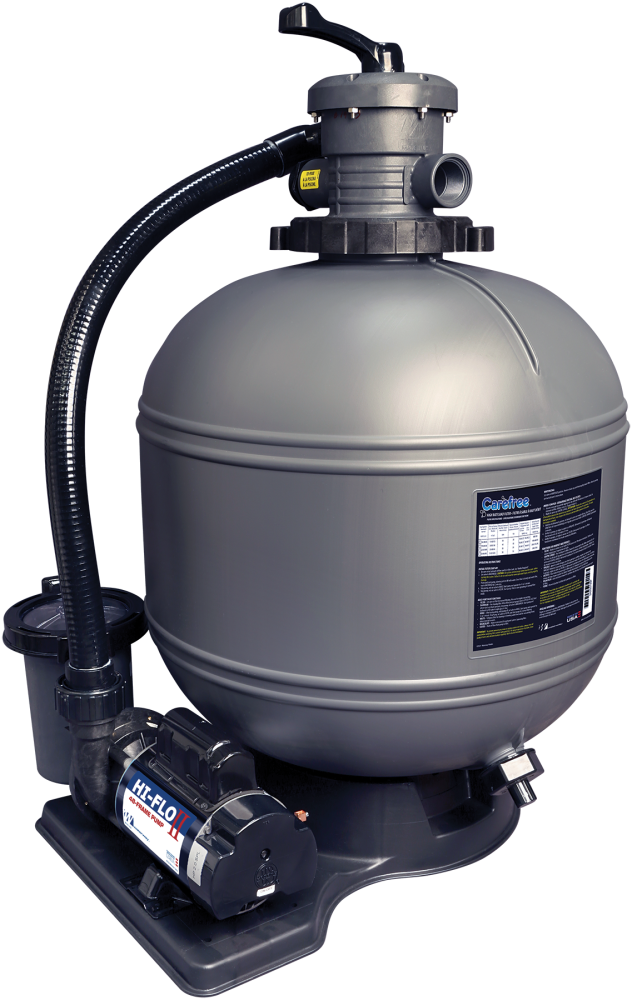

Carefree Top-Mount – Sand Standard System

Carefree Sand Filter Systems are designed with the ideal combination of high performance and excellent water clarity. The Carefree Sand Filter and Pump Pack System provides everything needed for an above ground pool package.

Features:

  • Large filter with extra sand-holding capacity
  • Hi-Flo II High Performance Single and Dual Speed Pump
  • Large 6" pump trap with 2-piece lid
  • Standard pump and filter base
  • Fittings package for all connections
  • Dual speed pump meets CEC Title 20 Code - Effective January 1, 2008
Pumps and replacement motors that are single speed and one (1) total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Carefree Sand Standard System with Hi-Flo II 1-Speed Pump

Part No. Filter Diameter Filtration Area Flow Rate Pump HP Weight (lbs.) Cord List (US $)
520-5320-3S FS01922 19" 2.0 sq. ft. 45 GPM PH1100-3 1.0 74 3 ft. TL 1,019.69
520-5330-3S FS01922 19" 2.0 sq. ft. 45 GPM PH1150-3 1.5 3 ft. TL 1,042.62
520-5340-3S FS02225 22" 2.6 sq. ft. 55 GPM PH1150-3 1.5 80 3 ft. TL 1,193.36
520-5300-6S FS01619 16" 1.4 sq. ft. 35 GPM PH1100-6 1.0 61 3 ft. NEMA 956.41
520-5320-6S FS01922 19" 2.0 sq. ft. 45 GPM PH1100-6 1.0 74 3 ft. NEMA 1,019.69
520-5330-6S FS01922 19" 2.0 sq. ft. 45 GPM PH1150-6 1.5 74 3 ft. NEMA 1,042.62
520-5350-6S FS02225 22" 2.6 sq. ft. 55 GPM PH1100-6 1.0 80 3 ft. NEMA 1,044.52
520-5340-6S FS02225 22" 2.6 sq. ft. 55 GPM PH1150-6 1.5 80 3 ft. NEMA 1,193.36
520-5360-6S FS02629 26" 3.5 sq. ft. 70 GPM PH1150-6 1.5 103 3 ft. NEMA 1,401.56

Includes:

  • 2 hoses (1 1/2" x 6 ft.)
  • Filter / Pump Hose with Union Adapters, hose fittings and hose clamps
  • 3 ft. cord Twist-Lock plug (NEC/UL), or 3 ft. cord NEMA plug
  • Standard system base

Carefree Sand Standard System with Hi-Flo II 2-Speed Pump

Part No. Filter Diameter Filtration Area Flow Rate Pump HP Weight (lbs.) Cord List (US $)
522-5300-3S FS01619 16" 1.4 sq. ft. 35 GPM PH2100-3 1.0 3 ft. TL 1,082.52
522-5320-3S FS01922 19" 2.0 sq. ft. 45 GPM PH2100-3 1.0 3 ft. TL 1,152.29
522-5350-3S FS02225 22" 2.6 sq. ft. 55 GPM PH2100-3 1.0 87 3 ft. TL 1,277.64
522-5340-3S FS02225 22" 2.6 sq. ft. 55 GPM PH2150-3 1.5 3 ft. TL 1,315.03
522-5300-6S FS01619 16" 1.4 sq. ft. 35 GPM PH2100-6 1.0 66 3 ft. NEMA 1,088.40
522-5320-6S FS01922 19" 2.0 sq. ft. 45 GPM PH2100-6 1.0 75 3 ft. NEMA 1,154.48
522-5340-6S FS02225 22" 2.6 sq. ft. 55 GPM PH2150-6 1.5 87 3 ft. NEMA 1,315.03

Includes:

  • 2 hoses (1 1/2" x 6 ft.)
  • Filter / Pump Hose with Union Adapters, hose fittings and hose clamps
  • 3 ft. cord Twist-Lock plug (NEC/UL), or 3 ft. cord NEMA plug
  • Standard system base

All power cords are 3′ in length.
