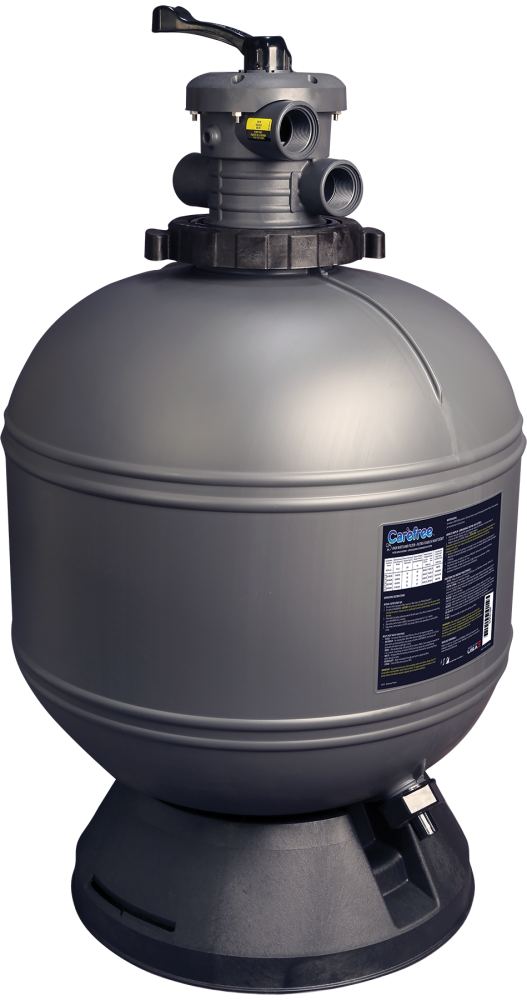

Carefree top-mount sand filters are designed for extra sand holding capacity. Made of corrosion proof polymeric thermoplastic, the Carefree snd filter offers the ideal combination of high performance and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.
Features:
- Large filter with extra sand-holding capacity
- Durable roto-molded oval tank body distributes pressure evenly, resulting in greater strength and longer life of the filter
- One-piece corrosion proof body
- High Flow internal diffuser for even water distribution
- 7- function Top-Mount - 1 1/2" or 2" - FPT Multi-Port Valve with Split-Nut Lock Union (WVS003)
- 1 1/2" drain port
- Mounting base included
Sand Required
| Size | Weight |
| 16" | 100 lbs. |
| 19" | 150 lbs. |
| 22" | 250 lbs. |
| 26" | 300 lbs. |
Carefree Top-Mount Sand Filters
| Part No. | Description | Multi-Port Valve Style | Filtration Area | Flow Rate | Pool Turnover (6-8-10 hrs.) | Weight (lbs.) |
| FS016197 | 16" diameter Filter w/Modular Base | 1 1⁄2" FPT Split-Nut | 1.4 sq. ft. | 35 GPM | 12,600 - 16,800 - 21,000 | 34 |
| FS019227 | 19" diameter Filter w/Modular Base | 1 1⁄2" FPT Split-Nut | 2.0 sq. ft. | 45 GPM | 16,200 - 21,600 - 27,000 | 43 |
| FS022257 | 22" diameter Filter w/Modular Base | 1 1⁄2" FPT Split-Nut | 2.6 sq. ft. | 55 GPM | 19,800 - 26,400 - 33,000 | 54 |
| FS02629 | 26" diameter Filter w/Modular Base | 1 1⁄2" FPT Split-Nut | 3.5 sq. ft. | 70 GPM | 25,200 - 33,600 - 42,000 | 71 |
| FS02629-B | 26" diameter Filter w/Modular Base | 2" FPT Split-Nut | 3.5 sq. ft. | 70 GPM | 25,200 - 33,600 - 42,000 | 71 |
