Designed, Engineered & Manufactured in the U.S.A.

Adjustable Collar Sump Bodies & Assemblies

Waterway's wide selection of pool drains and drain covers simplifies installation for new or existing pools and spas. We manufacture our drain bodies in PVC for better glue joints or threaded connections. Always use two or more drains per pump.

Features:

  • PVC body (better for slip or threaded sockets)
  • Available in 1 1/2" or 2" slip sockets
  • Collar and cover in white and colors
  • Tru Flo Drain Cover UL Listed

Note:Always use two or more drains per pump.

Adjustable Collar Sump Bodies & Assemblies

Part No. Description Case Qty List (US $)
674-2450 8" Sump Body - Adjustable Collar - 1 1⁄2" S (Side x Bottom) (For color order w/640-234x V) 1 30.62
674-2550 8" Sump Body - Adjustable Collar - 2" S (Side x Bottom) (For color order w/640-234x V) 1 30.62
674-2560 8" Sump Body - Adjustable Collar - 2" S (Side Only) (For color order w/640-234x V) 1 30.62
640-292x V 8" Sump Assembly - Adjustable Collar - 2" S (Side x Bottom) - w/8" Anti-Vortex Drain Cover/White only 1 55.39
640-234x V 8" Anti-Vortex Drain Cover and Extended Collar Assembly 1 24.80
640-191x V 10" Tru Flo Drain Cover and Extended Collar Assembly 1 47.25

Replace the final x in the part number with the color of your choice (see Color Guide for colors)

Features:

  • Meets Florida Building Code
  • 8" diameter x 7" deep (8') (plus sockets)

Note: Always use two or more drains per pump.

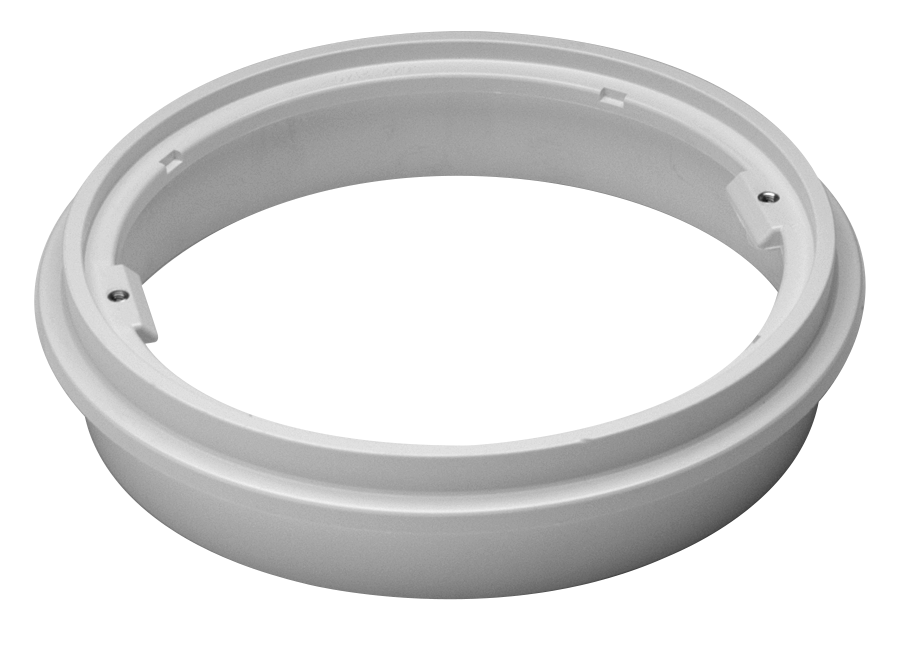

Adjustable Collar Deep Sump Bodies & Assemblies - Side x Bottom

Part No. Description Case Qty List (US $)
674-2640 8" Deep Sump Body - Adjustable Collar - 2 1⁄2" S (For color order w/640-234x V) 1 42.87
640-7420 V 8" Deep Sump Assembly - Adjustable Collar - 2 1⁄2" S - with 8" Tru Flo Drain Cover/White only 1 140.41
674-2720 10" Deep Sump Body - Adjustable Collar - 2 1⁄2" S (For color order w/640-191x V) 1 121.51
674-2730 10" Deep Sump Body - Adjustable Collar - 2 1⁄2" FPT (For color order w/640-191x V) 1 121.51
674-2920 10" Deep Sump Body - Adjustable Collar - 3" S (For color order w/640-191x V) 1 133.64
674-2930 10" Deep Sump Body - Adjustable Collar - 3" FPT (For color order w/640-191x V) 1 133.64
640-722x V 10" Deep Sump Assembly - Adjustable Collar - 2 1⁄2" S - with 10" Tru Flo Drain Cover/White only 1 167.58
640-723x V 10" Deep Sump Assembly - Adjustable Collar - 2 1⁄2" FPT - with 10" Tru Flo Drain Cover/White only 1 167.58
640-732x V 10" Deep Sump Assembly - Adjustable Collar - 3" S - with 10" Tru Flo Drain Cover/White only 1 179.71
640-733x V 10" Deep Sump Assembly - Adjustable Collar - 3" FPT - with 10" Tru Flo Drain Cover/White only 1 179.71

Replace the final x in the part number with the color of your choice (see Color Guide for colors)
