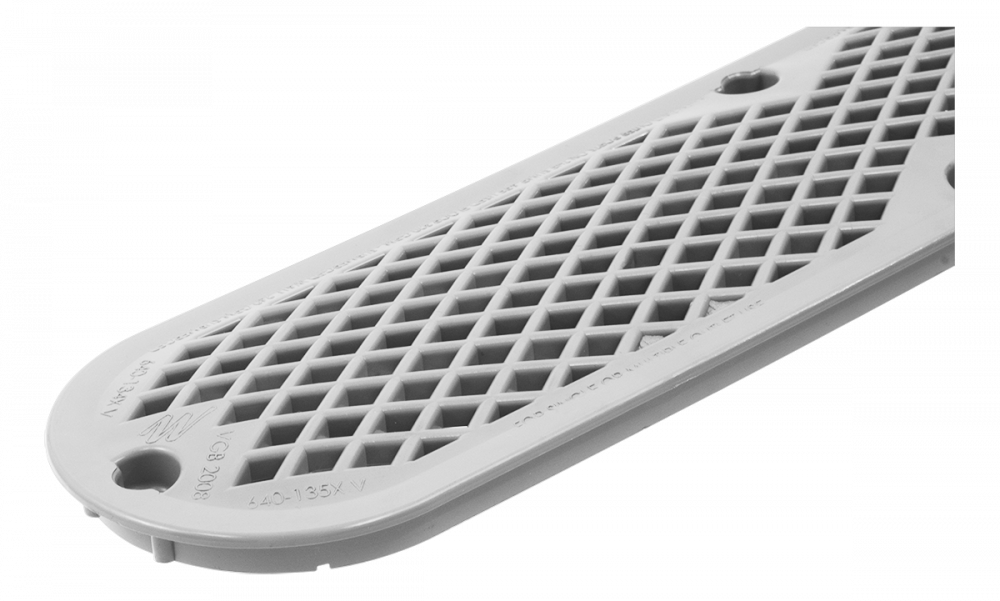

32″ Diamond Strip Drains

Specifications:

  • Total Open Area: 37.7 sq. in.
  • Frame Size: 32" Channel
  • Floor Flow Rate (One Port Center): 280 GPM @ 3.75 ft/sec
  • Floor Flow Rate (Two Ports): 320 GPM @ 4.29 ft/sec
  • Wall Flow Rate (One Port Center): 216 GPM @ 2.89 ft/sec
  • Wall Flow Rate (Two Ports): 240 GPM @ 3.22 ft/sec
  • Flow Rate @ 1.5 ft/sec: 110 GPM
  • Ports - 2" S or 2-1/2" SPG
  • 2 - 2" MPT Plugs Included

32" Diamond Strip Drains - Vinyl

Part No. Description Case Quantity List (US $)
640-134x V 32" Diamond Strip Drain - Vinyl 1 458.22
642-1320 32" Plaster Body Drain 1 220.03

Replace the final x in the part number with the color of your choice (see Color Guide for colors)

Specifications:

  • Total Open Area: 37.7 sq. in.
  • Frame Size: 32" Channel
  • Floor Flow Rate (One Port Center): 280 GPM @ 3.75 ft/sec
  • Floor Flow Rate (Two Ports): 320 GPM @ 4.29 ft/sec
  • Wall Flow Rate (One Port Center): 216 GPM @ 2.89 ft/sec
  • Wall Flow Rate (Two Ports): 240 GPM @ 3.22 ft/sec
  • Flow Rate @ 1.5 ft/sec: 110 GPM
  • Ports - 2" S or 2-1/2" SPG
  • 2 - 2" MPT Plugs Included

32" Diamond Strip Drains - Fiberglass

Part No. Description Case Quantity List (US $)
640-135x V 32" Diamond Strip Drain - Fiberglass 1 458.22
640-134xLG V 32" Diamond Strip Drain for Fiberglass Spas 1 445.04
642-1320 32" Plaster Body Drain 1 220.03

Replace the final x in the part number with the color of your choice (see Color Guide for colors)
